SUSTECH STD 4B Specifications

OVERVIEW

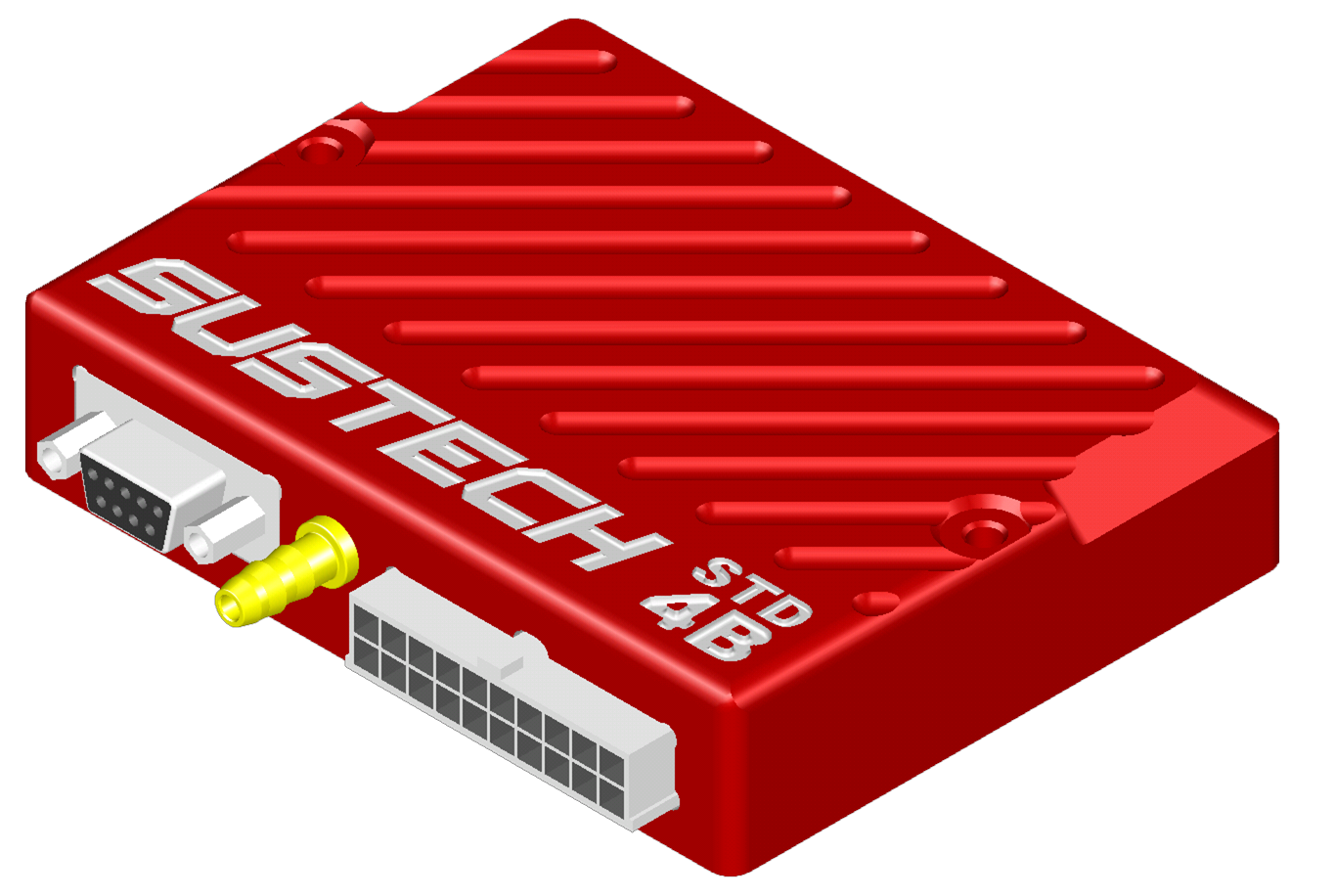

SUSTECH’s mid-level ECU is a compact ECU. It allows for more control of the engine such as VTEC/VVL and Launch Control as standard. The ECU can accept inputs from most common RPM triggers while still focusing on being cost effective for the user.

The ECU also offers twin built-in igniter modules thus allowing you to run the engines coils without the need for an external igniter module, therefore reducing your total installation cost. It is capable of single coil setup or running a 4 cylinder in wasted spark mode.

Below we give a brief overview of what the SUSTECH STD 4B ECU has to offer, followed by a more detailed description of each feature, as well as discussing the more advanced functions.

OVERVIEW:

  • 2 x Injector Outputs
  • 2 x Coil Outputs
  • 1 x User Selectable GPO Output (General Purpose Output)
  • 1 x User Selectable GPI Input (General Purpose Input)
  • Dedicated Radiator Fan Output
  • Dedicated Fuel Pump Relay Output
  • Dedicated Advanced Tachometer Output
  • 2 x Dedicated Sensor Inputs – Water Temp and TPS Inputs
  • Dedicated RPM Trigger Input
  • Dedicated Ignition Switch Input
  • 1 x 5V Sensor Output

HIGHLIGHTS AND FEATURES

  • Semi-Sequential Injection up to 4 Cylinders, Batch up to 6 Cylinders
  • Wasted Spark up to 4 Cylinders, Single Coil up to 6 Cylinders
  • Integrated Radiator Fan Controller
  • Multiple Trigger Setups are user selectable via Laptop Software
  • Hall and Magnetic Supported and selectable via Laptop Software
  • Advanced Functions (explained below)

INPUT CONFIGURATIONS

OVERVIEW

7 Inputs in Total

1 x Engine Position Input

  • 1 x Dedicated RPM Input with extensive trigger style support.
  • Accepts signals from Hall and Magnetic Sensors on both Trigger and Home Inputs

3 x DPI (Dedicated Purpose Inputs)

  • 1 x – Water Temp Input
  • 1 x – Battery Voltage Input
  • 1 x – TPS Sensor Input

1 x Dedicated On-Board MAP Sensor Input

  • Internal 3 Bar Scalable MAP Sensor integrated into the ECU

1 x GPI (General Purpose Input)

  • 1 Analogue or Digital Input
  • User Selectable Functions via Laptop PC Software

1 x Ignition Switch Input

  • Switches the ECU on when ignition switch is turned on

HIGHLIGHTS AND FEATURES

RPM TRIGGER:

  • Single Pulse per cylinder (eg. Distributor)
  • Multi-Tooth Trigger Wheel (eg. 24+1, 24+2, 12+1)
  • Missing Tooth Trigger Wheel (eg. 60-2, 36-1, 36-2)
  • All trigger pattern options user selectable
  • Supports Hall and Magnetic Sensors (Selectable via laptop)

TEMPERATURE SENSORS:

  • Water Temp
  • Calibratable to any sensor’s temperature coefficient

MAP SENSOR:

  • 3 Bar Internal Sensor for ease of installation
  • Boost range scalable to lower boost values

GPI INPUTS:

  • All Functions are User Selectable
  • Launch Anti-Lag Control
  • High/Low Boost Control
  • Fuel Enrichment POT
  • Ignition Offset POT

OUTPUT CONFIGURATIONS

OVERVIEW

9 Outputs in Total:

2 x Injector Outputs

  • Capable of 1 x Low impedance injectors per output **
  • Capable of 3 x High impedance injectors per output **
  • ** only one of the above can be utilized

2 x Coil Outputs

  • 2 x Low Power Output
  • 2 x High Power Built-in Ignitor module

1 x GPO Outputs (General Purpose Outputs)

  • User Selectable General-Purpose Output Functions

3 x DPO (Dedicated Purpose Outputs)

  • 1 x Dedicated Radiator Fan Output
  • 1 x Dedicated Fuel Pump Output
  • 1 x Dedicated Tachometer Output

1 x 5V Sensor Output

  • Supplies power to TPS and other accessories used for GPI’s

HIGHLIGHTS AND FEATURES

FUELLING:

  • 4 Cylinder – Batch or Semi-Sequential
  • 6 Cylinder – Batch

IGNITION:

  • 4 Cylinder – Single Coil, Wasted Spark
  • 6 Cylinder – Single Coil
  • Low Power Output can drive external ignitor modules or smart coils
  • High Power Built-in Ignitor module can drive dumb coils directly and therefor does not require an external ignitor modules

GPO OUTPUTS:

  • All Functions are User Selectable
  • High/Low Boost Control
  • VTEC / VVL
  • Intake Manifold Flaps
  • Shift Light
  • NOS Control

DEDICATED OUTPUT:

  • Radiator Fans

SAFETY FEATURES

Status LEDs

  • LEDs for Engine Voltage
  • Input Trigger LED
  • Injector LED’s show if injectors are pulsing correctly

Boost Limiter

  • Adjustable Boost limiter can be set to the RPM of your choice and can cut fuel, spark, or both

Radiator Fans

  • Error Detection on Radiator fan input for wire failure or unplugging during operation to force radiator fans on

Rev Limiter

  • Adjustable Rev limiter can be set to the RPM of your choice and can cut fuel, spark, or both

ADVANCED FUNCTIONS

OUTPUTS

GPO General Purpose Outputs

  • GPO Function can be set to any function via laptop software

High/Low Boost Control

  • Allows the user to set the boost via an electronic solenoid valve

INPUTS

Anti-Lag Launch Control

  • Fast responding launch control helps to produce boost quicker
  • Can be activated at idle, but the ECU will not initiate Launch function until it reaches the Launch RPM

TUNING FUNCTIONS

TUNING

Laptop data logging

  • Data log all available channels directly to the laptop
  • Logging rate of all channels at up to 250 Hz
  • Save datalogs to your hard drive for viewing at a later stage
  • Can be used for tuning and diagnostics
  • Logs Fuel ms, Fuel Duty %, Ignition Timing, Lambda (AFR), Water temp, Battery Voltage, MAP Sensor (boost/vacuum), TPS, Idle valve %, and more

Fuel Map Size

  • Table Resolution selectable up to 17 x 15 load sites for finer tuning accuracy

Ignition Map Size

  • Table Resolution up to 6 x 15

RPM Ranges Selectable

  • User selectable from 500rpm spacing up to 750rpm spacing

INPUTS

LOAD SENSING:

  • MAP based Load Sensing
  • TPS based Load Sensing

THROTTLE PUMP SENSING:

  • Selectable to MAP based or TPS based Throttle Pump Sensing

RACE FUNCTIONS

  • Nitrous Control
  • Boost Control
  • Launch Control
