SUSTECH ECO 4A Specifications

OVERVIEW

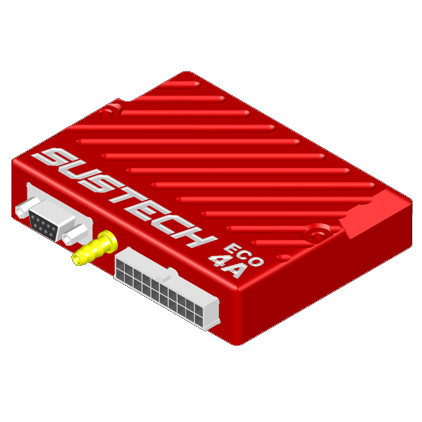

SUSTECH’s entry level ECU is a compact ECU with everything you need to get a vehicle running. The primary focus of this ECU is cost effectiveness. It achieves this by incorporating a built-in ignitor module. This allows it to run your engine’s coil without the need for an external ignitor, thus reducing your total installation cost.

Below we give a brief overview of what the SUSTECH ECO 4A ECU has to offer, followed by a more detailed description of each feature, as well as discussing the more advanced functions below that.

OVERVIEW:

  • 2 x Injector Outputs
  • 1 x Coil Output
  • 1 x User Selectable GPO Output (General Purpose Output)
  • 1 x User Selectable GPI Input (General Purpose Input)
  • Dedicated Radiator Fan Control Output
  • Dedicated Fuel Pump Relay Output
  • Dedicated Advanced Tachometer Output
  • 2 x Dedicated Sensor Inputs – Water Temp and TPS Inputs
  • Dedicated RPM Trigger Input
  • Dedicated Ignition Switch Input
  • 1 x 5V Sensor Output

HIGHLIGHTS AND FEATURES

  • Semi-Sequential Injection up to 4 Cylinders
  • Batch Fuelling up to 6 Cylinders
  • Single Coil up to 6 Cylinders
  • Integrated Radiator Fan Controller
  • Hall and Magnetic Supported and selectable via Laptop Software
  • Drives dumb coils directly therefor removing the need for an external ignitor module
  • Cost effective design

INPUT CONFIGURATIONS

OVERVIEW

6 Inputs in Total

1 x Engine Position Input

  • 1 x Dedicated RPM Input for distributor applications
  • Accepts signals from Hall and Magnetic Sensors on both Trigger and Home Inputs

3 x DPI (Dedicated Purpose Inputs)

  • 1 x – Water Temp Input
  • 1 x – Battery Voltage Input
  • 1 x – TPS Sensor Input

1 x Dedicated On-Board MAP Sensor Input

  • Internal 3 Bar Scalable MAP Sensor integrated into the ECU

1 x Ignition Switch Input

  • Switches the ECU on when ignition switch is turned on

HIGHLIGHTS AND FEATURES

RPM TRIGGER:

  • Single Pulse per cylinder (eg. Distributor)
  • Supports Hall and Magnetic Sensors (Selectable via laptop)

TEMPERATURE SENSORS:

  • Water Temp
  • Calibratable to any sensor’s temperature coefficient

MAP SENSOR:

  • 4 Bar Internal Sensor for ease of installation
  • Boost range scalable to lower boost values

GPI INPUTS:

  • All Functions are User Selectable
  • Launch Anti-Lag Control
  • Fuel Enrichment POT
  • Ignition Offset POT

OUTPUT CONFIGURATIONS

OVERVIEW

8 Outputs in Total:

2 x Injector Outputs

  • Capable of 1 x Low impedance injectors per output **
  • Capable of 2 x High impedance injectors per output **
  • ** only one of the above can be utilized

1 x Coil Output (High and Low)

  • 1 x Low Power Output
  • 1 x High Power Built-in Ignitor module

1 x GPO Output (General Purpose Output)

  • User Selectable General-Purpose Output Functions

3 x DPO (Dedicated Purpose Outputs)

  • 1 x Dedicated Radiator Fan Output
  • 1 x Dedicated Fuel Pump Output
  • 1 x Dedicated Tachometer Output

1 x 5V Sensor Output

  • Supplies power to TPS and other accessories used for GPI’s

HIGHLIGHTS AND FEATURES

FUELLING:

  • up to 4 Cylinder Semi Sequential
  • up to 6 Cylinder Batch Fire

IGNITION:

  • up to 6 Cylinder Single Coil
  • Low Power Output can drive external ignitor modules or smart coils
  • High Power Built-in Ignitor module can drive dumb coils directly and therefor does not require an external ignitor module

GPO OUTPUTS:

  • All Functions are User Selectable
  • VTEC / VVL
  • Shift Light
  • NOS Control

SAFETY FEATURES

Status LEDs

  • LEDs for Engine Voltage
  • Input Trigger LED
  • Injector LED’s show if injectors are pulsing correctly

Boost Limiter

  • Adjustable Boost limiter can be set to the RPM of your choice and can cut fuel, spark, or both

Radiator Fans

  • Error Detection on Radiator fan input for wire failure or unplugging during operation will force radiator fans on

Rev Limiter

  • Adjustable Rev limiter can be set to the RPM of your choice and can cut fuel, spark, or both

ADVANCED FUNCTIONS

OUTPUTS

GPO General Purpose Outputs

  • GPO Function can be set to any function via laptop software

Dedicated Purpose Output

  • Radiator Fan output can be adjusted to any temperature you choose via PC Software

TUNING FUNCTIONS

TUNING

Laptop data logging

  • Data log all available channels directly to the laptop
  • Logging rate of all channels at up to 250 Hz
  • Save datalogs to your hard drive for viewing at a later stage
  • Can be used for tuning and diagnostics
  • Logs Fuel ms, Fuel Duty %, Ignition Timing, Lambda (AFR), Water temp, Air Temp, Battery Voltage, MAP Sensor (boost/vacuum), TPS, Idle valve %, and more

Fuel Map Size

  • Table Resolution selectable up to 17 x 15 load sites for finer tuning accuracy

Ignition Map Size

  • Table Resolution up to 6 x 15

RPM Ranges Selectable

  • User selectable from 500rpm spacing up to 750rpm spacing

INPUTS

LOAD SENSING:

  • MAP based Load Sensing
  • TPS based Load Sensing

THROTTLE PUMP SENSING:

  • Selectable to MAP based or TPS based Throttle Pump Sensing
